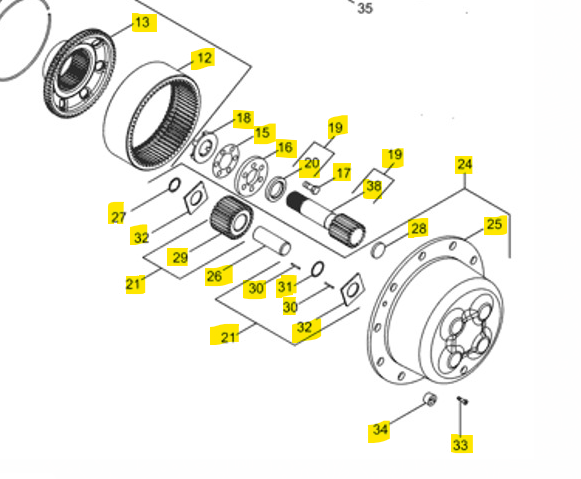

CJ PLANETARIO | 302251A2

Pos.

Part Nº

Qty

Partsname

Comments

10.

281984A1

[2]

RING GEAR

CAS Inc. 12 – 14

15.

1981236C1

[2]

SHIM KIT

IH Inc. 15

16.

251190A1

[2]

LARGE PLATE

CAS PLATE, LARGE

17.

628-12030

[12]

BOLT,Hex,
M12 x 1.75 x 30mm, Cl 10.9, FullThd

CAS Supersededbypartnumber: 87015736

18.

310947A1

[2]

THRUST WASHER

CAS

19.

302198A2

[2]

SUN GEAR,Planetary Drive, STD

RAC Inc. 20, 38

19.

302198A2R

[2]

REMAN-GEAR

RAC Inc. 20, 38

19.

302198A2C

[2]

CORE-GEAR

RAC Core ReturnNumber

21.

316330A2

[1]

FIP KIT

CAS Inc. 29 – 32

24.

302251A2

[2]

GEAR WHEEL

CAS Inc. 25 – 32

26.

302197A1

[4]

PIN,33.3mm OD x 92mm L

CAS

27.

100-21131

[4]

SNAP RING,1.312″, Int, #131

CAS Supersededbypartnumber: 87023043

28.

302184A1

[1]

HOLE PLUG BUTTON

CAS

33.

864-6020

[4]

HEX SOC SCREW,
M6 x 20mm, Cl 8.8

CAS Supersededbypartnumber: 86531615

34.

221-887

[2]

PLUG

CAS 3/4

35.

253212A1

[20]

NUT

CAS

36.

87403378

[2]

THRUST WASHER

RAC

37.

87403379

[2]

RING, SNAP

RAC RING SNAP

39.

87311480

[1]

SEAL KIT

RAC Hub Seal Supersededbypartnumber: 87588941

39.

87588941

[1]

SEAL KIT

RAC Hub Seal

40.

87588837

[1]

SEAL KIT

RAC V-Ring Seal
